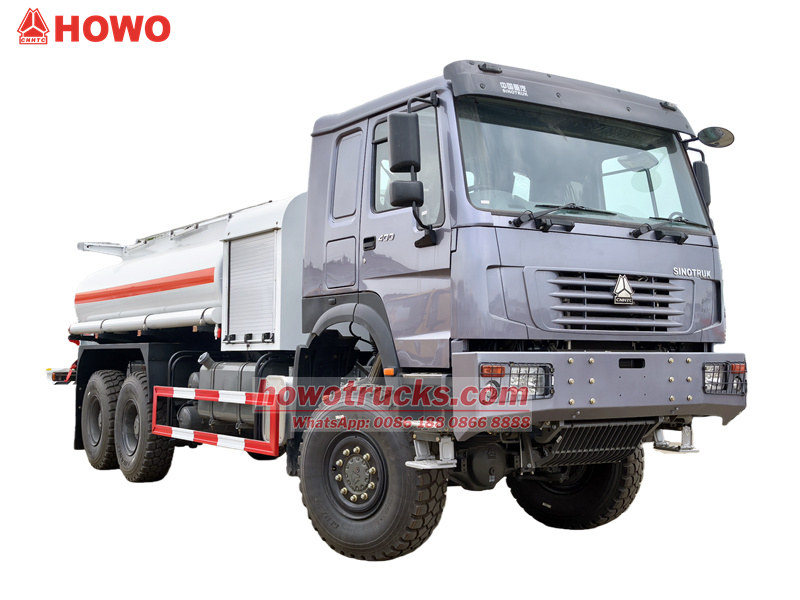

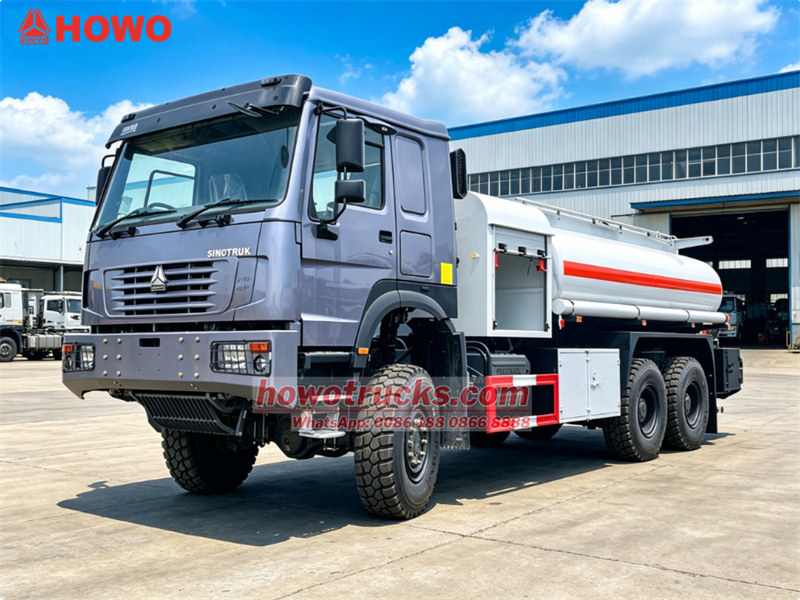

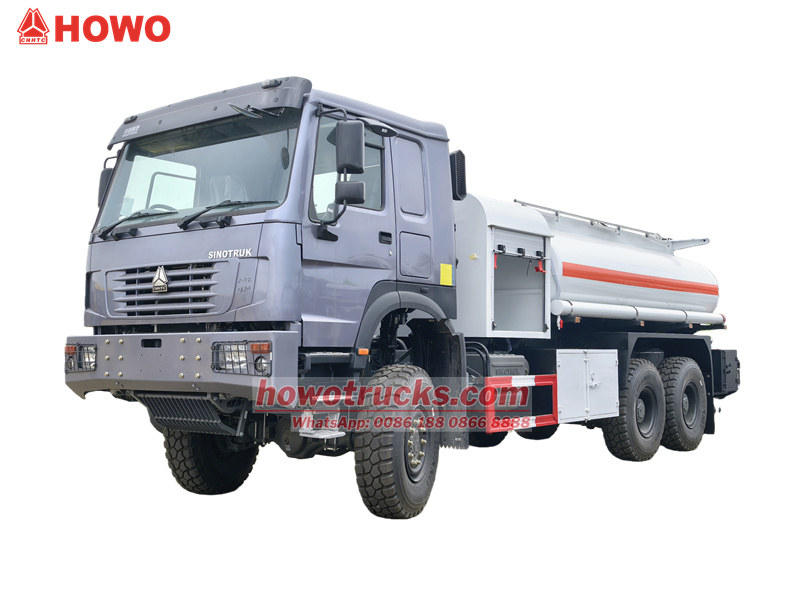

The Howo 6x6 offroad 12cbm wildland fuel bowser truck is the city special refueling tank truck. The Howo fuel tanker equipped with a WD model 6 cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 400HP. The gearbox is 10 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tanker has strong power and good controllability, suitable for various road conditions oil transportation work.
作業能力 :
12000Lキャビンタイプ :
Howo single cabin, with one sleeper駆動システム :
6x6ホイールベース（mm） :
4600+1350エンジン固有 :
WP12S400E201ギアボックス :
HW19710C, 10 forwards & 2 reversesフロントアクスル（kg） :
7500後車軸（kg） :
13000*2The Howo 6x6 offroad 12cbm wildland fuel bowser truck is the city special refueling tank truck. The Howo fuel tanker equipped with a WD model 6 cylinder in-line water-cooled turbocharged intercooled diesel engine with a maximum output of 400HP. The gearbox is 10 front speeds and 2 rear speed, equipped with a reinforced diaphragm clutch. The Howo fuel tanker has strong power and good controllability, suitable for various road conditions oil transportation work.
The actual volume of the oil tank is 12,000 liters. Q235 carbon steel is used as the protective material. The tank body is made of carbon steel with a thickness of not less than 5 mm. The Howo fuel tank truck is equipped with Chinese famous brand pumps, valves and pipes, as well as a set of fuel distributors. The oil tank is equipped with a ladder for easy operation, and can be designed into multiple compartments according to needs.

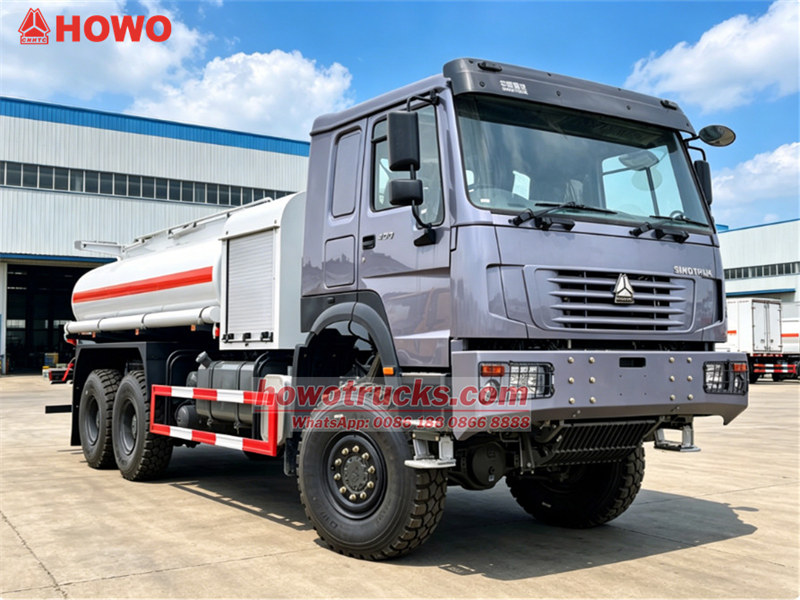

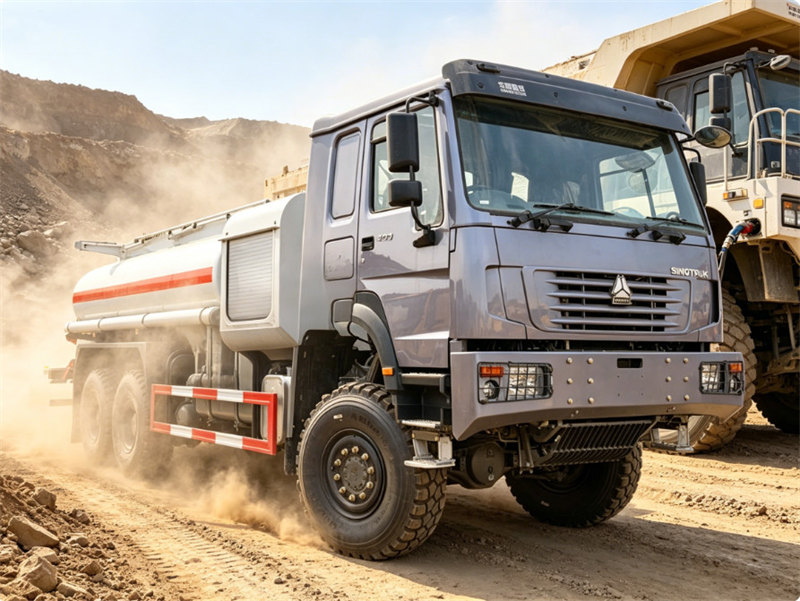

*Howo Mining 6WD Fuel Pump Tank Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Sinotruk Howo truck chassis,6x4, 6x6 model, WP model with 300HP,340HP,380HP,400HP... Euro 2,3
▶ Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.
▶ Professional Compartment：The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.
✦ Ⅱ.Product Parameter For Howo Mining Fuel Tank Truck « « «
|
Howo Mining 6x6 Fuel Tank Truck |
||
|
Drive system |
6X6 off road |
|
|
Chassis |
Howo |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
9800*2530*3350 |
|
Wheel base (mm) |
4600+1370 |
|
|
Overhang (front/rear) (mm) |
1380/1820 |
|
|
Approach/Departure angle(°) |
23/17 |
|
|
Weight in KGS |
Curb Weight |
12500 |
|
GVW. |
25000 |
|
|
Max. driving speed(km/h) |
105 |
|
|
Engine |
Model |
WP12S400E201 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
400 HP |
|
|
Emission standard |
Euro 2 |
|
|
Gearbox |
HW19710, 10 forwards & 2 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
100L |
|
|
Tire |
12.00R20 10 pcs+1 spare tire |
|
|
Upper Body |
||
|
Fact cubage |
12000Liters |
|
|
Protective material |
Q235 carbon steel |
|
|
Tank meterial |
<5mm> carbon steel |
|
|
Equipment |
1.Equipped with China famous brand pump, valves and pipes, a set of Fuel Dispenser |
|

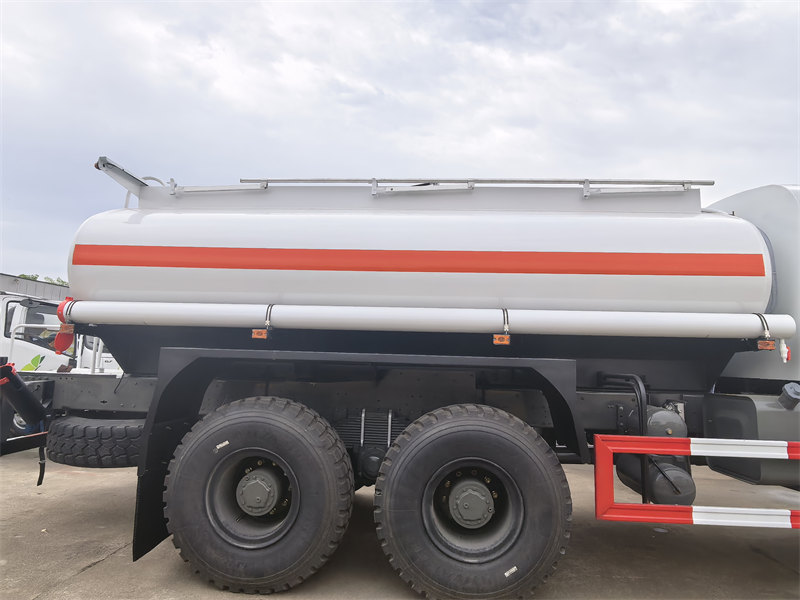

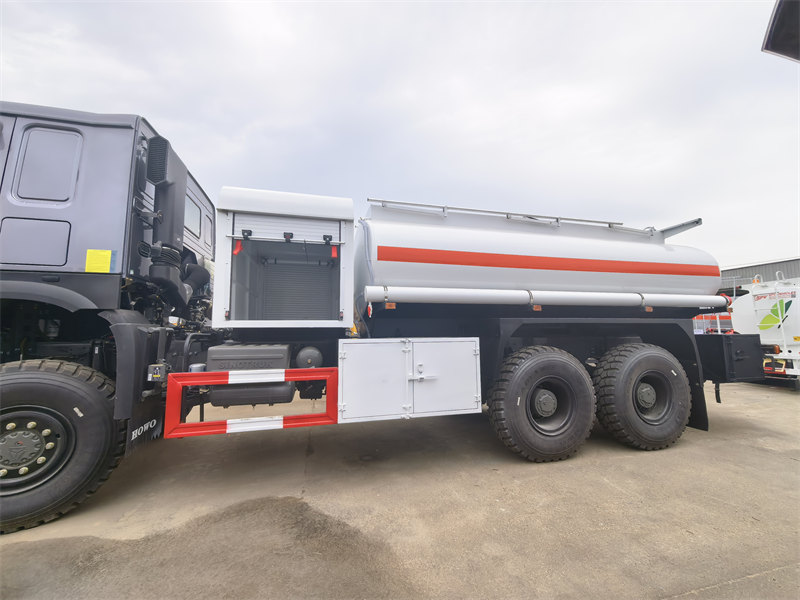

✦ Ⅲ. 12000L Fuel Tank Body « « «
♦ The tank body shape can be customized to meet different customer needs, including round, oval, rectangular, and trapezoidal shapes.
♦ The top of the tank is equipped with a manhole cover, breather valve, oil vapor recovery system, and guardrail.
♦ The bottom of the tank has a sedimentation tank, and the rear has a drain valve.

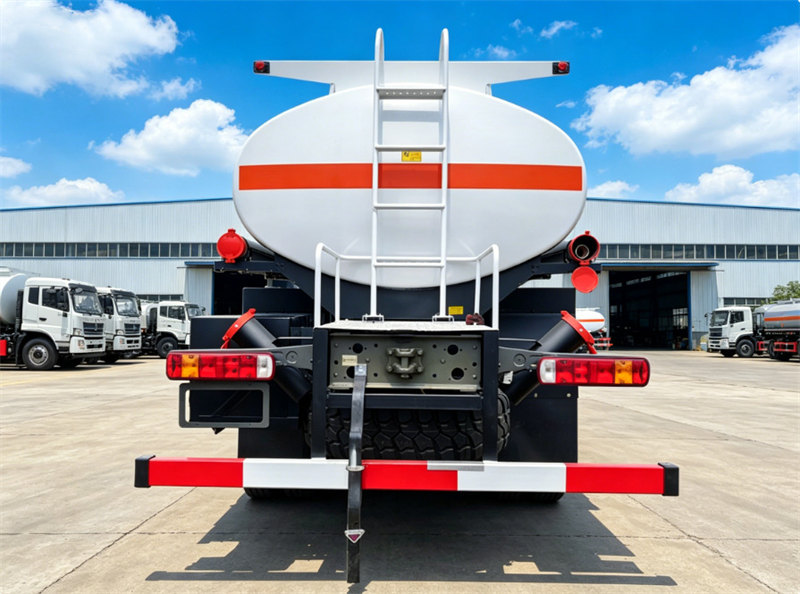

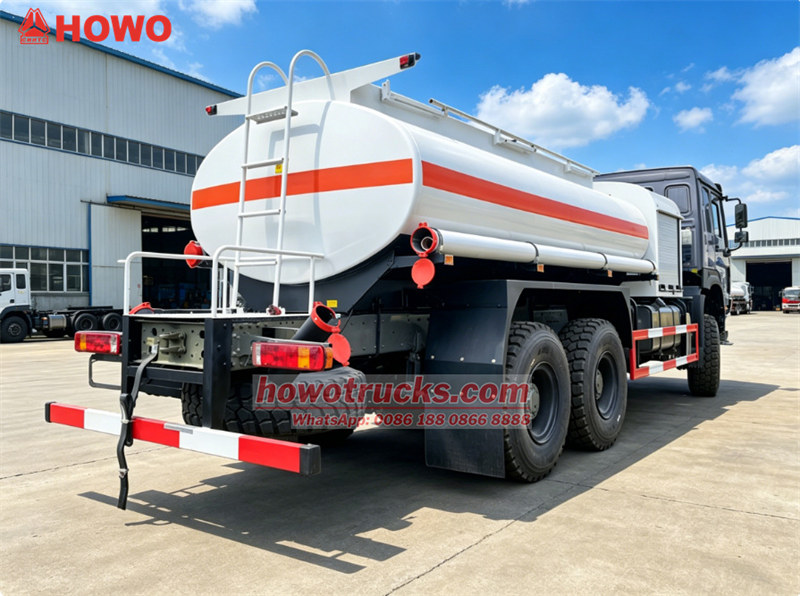

♦ The tank body is equipped with ladders and walkways for accessing the upper and lower tanks.
♦ The interior of the tank has horizontal and vertical baffles to reduce fluctuations in the liquid inside the tank during vehicle acceleration and deceleration.
♦ The top mainly consists of the tank opening, breather valve, and oil vapor recovery system.
♦ The tank opening is a φ500 diameter hole for maintenance and repair.
✦ Ⅳ.Fuel Pump System for Howo Fuel Tank Truck « « «
♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.
♦ The oil pump is connected to the chassis via a pump mounting bracket.
 |
 |
♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.
♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.
|
Circular Arc Gear Oil Pump |
|
|
Model |
80YHCB-60 |
|
Pressure |
0.6 MPa |
|
Flow |
60 m³/h |
|
Power Supplied |
11 KW |
|
Rotational Speed |
970 r/min |
✦ Ⅴ.Howo Fuel Truck Safety Protection Devices « « «
♦ The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.
♦ A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.
♦ To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.
♦ Fire extinguishers are provided on both sides of the oil tank.
✦ Ⅵ.Application Feature for Howo Fuel Truck « « «

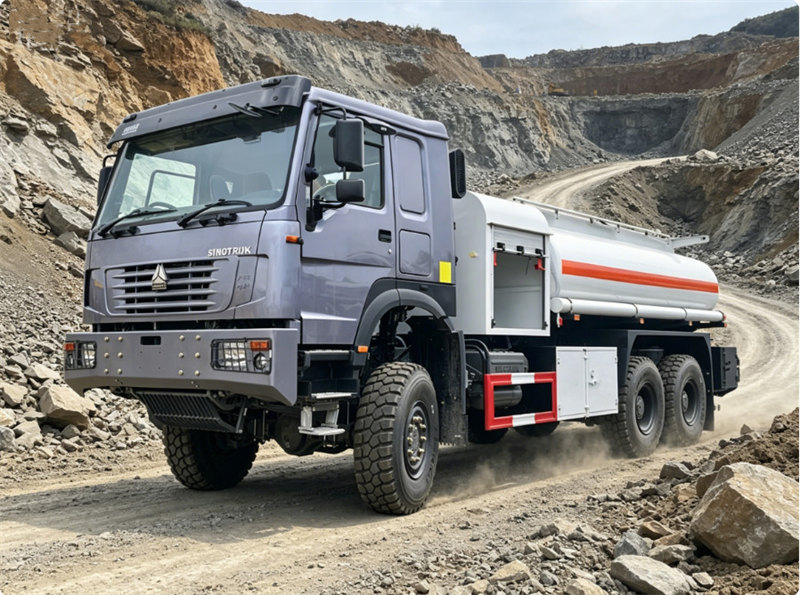

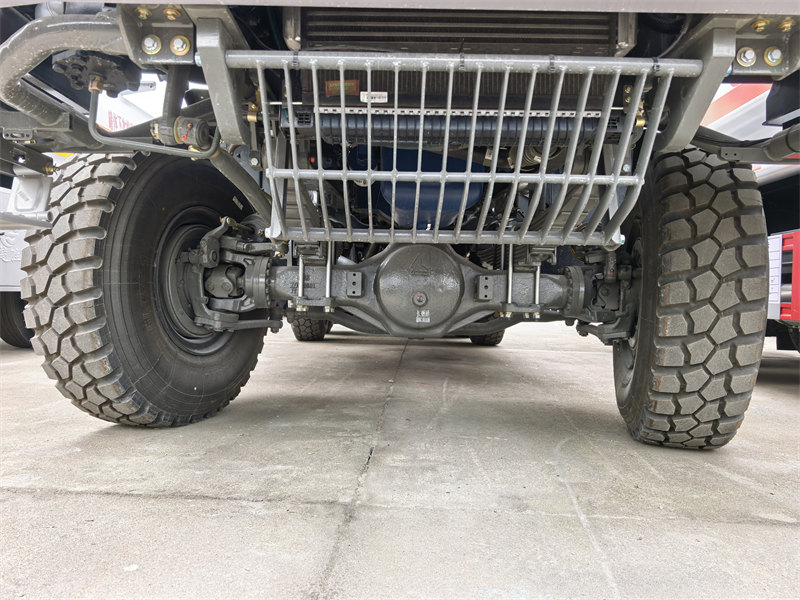

♦ The Howo off road chassis can handle various rough road conditions, making it crucial for refueling missions requiring access to remote construction sites, mining areas, or unpaved roads.
♦ The WP12S400E201 400HP engine provides smooth, reliable, and economical power output across various terrains.
♦ The Howo fuel tanker features a highly customizable and integrated design, flexibly adapting to diverse customer needs and forming an independent, efficient fuel delivery unit.
|
Feature |
Specific manifestations |
|
All Drive Capability |
All wheel drive chassis + high ground clearance easily handle gravel, steep slopes and muddy road conditions. |
|
High Security Protection |
Tank with explosion-proof baffles, anti-static device, and emergency shut-off valve, suitable for transporting high-risk oils. |
|
Efficient Work |
High flow fuel dispenser + multi-diameter pipeline, adaptable to different equipment for rapid refueling. |
|
Strong Environmental Tolerance |
Dustproof, high-temperature resistant, and corrosion-resistant design, suitable for harsh environments such as mining areas and deserts. |
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
