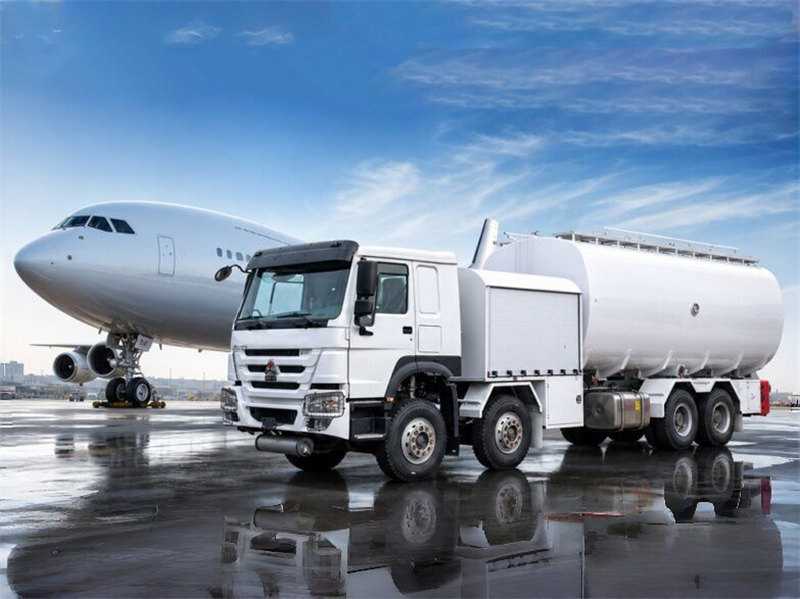

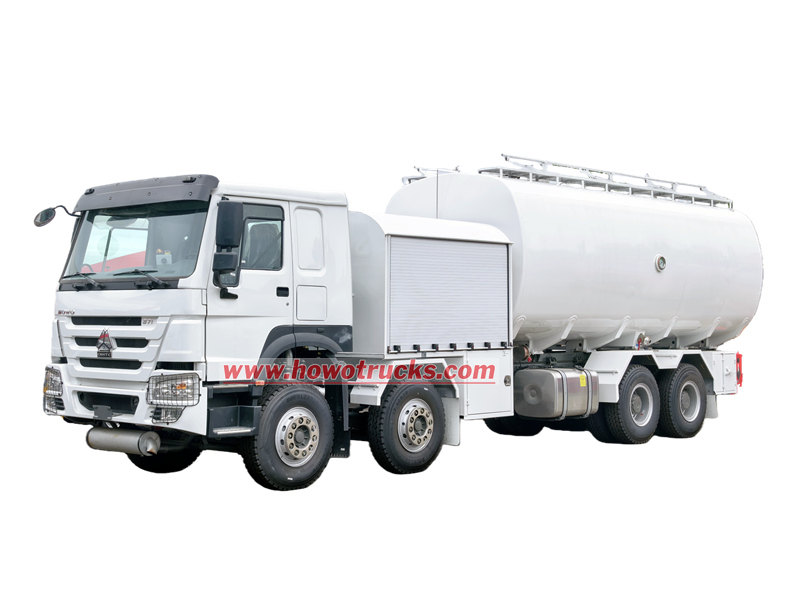

The Sinotruk HOWO 8x4 aircraft refueling truck is custom-engineered for airport emergency continuous aircraft fuel supply, powered by a 400HP high-performance WP inline six-cylinder turbo intercooled diesel engine paired with a 10-forward-2-reverse heavy transmission and reinforced diaphragm clutch to deliver abundant torque, responsive shifting and outstanding load-bearing performance. Mounted on a rugged 8x4 heavy-duty chassis with a large aviation fuel tank fitted with top safety rails and a sealed side roller shutter cabinet for refueling equipment, it meets international aviation safety standards and serves as a trustworthy, high-efficiency fuel transport and refueling workhorse for global airports and aviation ground service operators.
作業能力 :
20000Lキャビンタイプ :
HOWO single cabin, with one sleeper駆動システム :
0x4ホイールベース（mm） :
1750+4600+1350エンジン固有 :
WP12S400E201ギアボックス :
HW19710C, 10 forwards & 2 reversesフロントアクスル（kg） :
7500*2後車軸（kg） :
13000*2The Sinotruk HOWO 8x4 aircraft refueling truck is custom-engineered for airport emergency continuous aircraft fuel supply, powered by a 400HP high-performance WP inline six-cylinder turbo intercooled diesel engine paired with a 10-forward-2-reverse heavy transmission and reinforced diaphragm clutch to deliver abundant torque, responsive shifting and outstanding load-bearing performance.

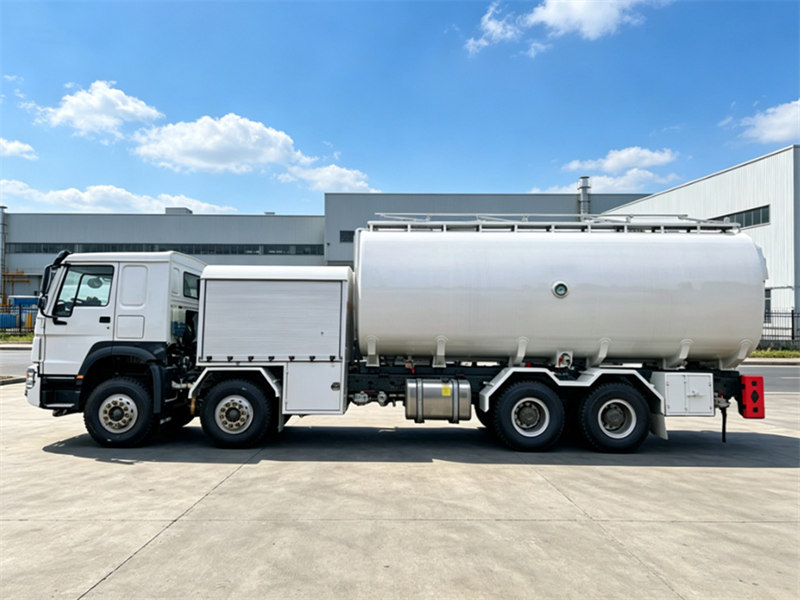

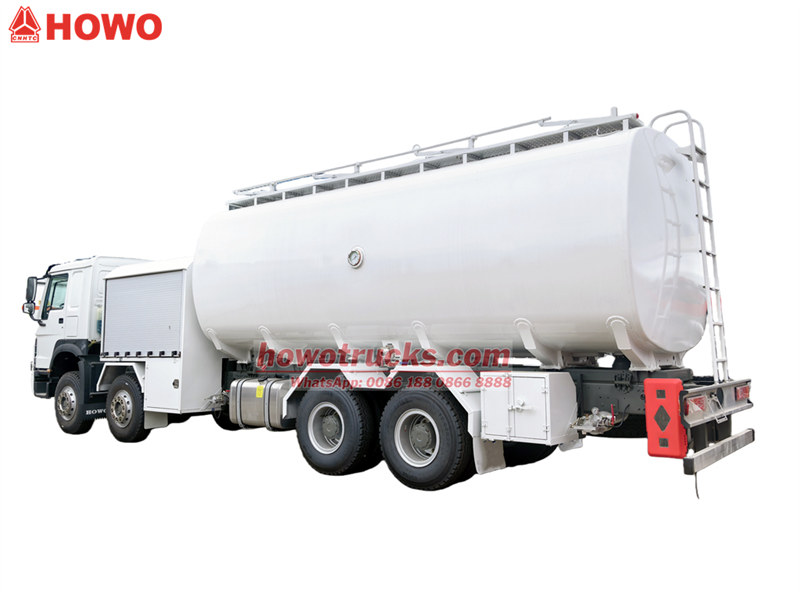

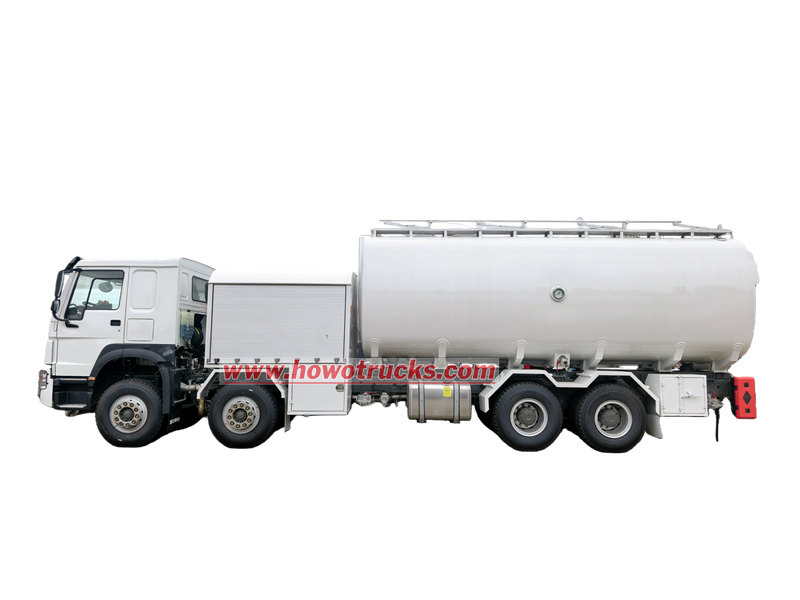

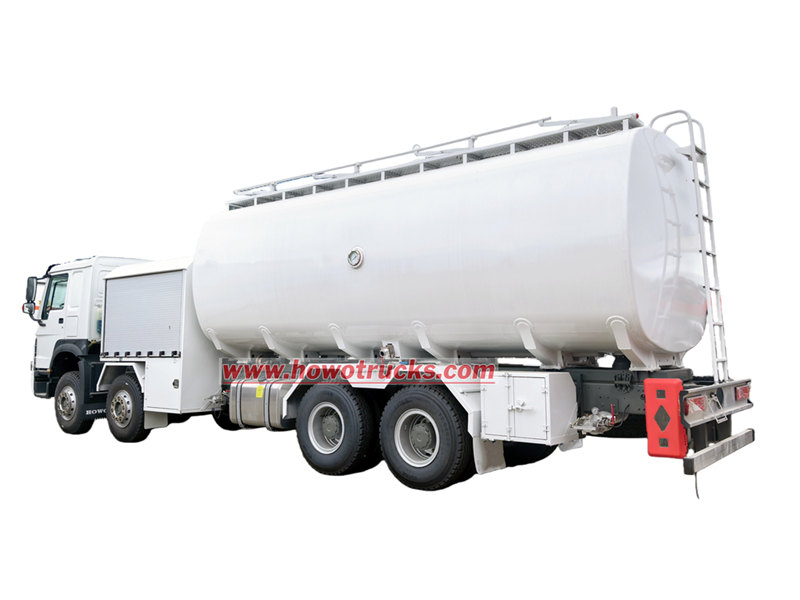

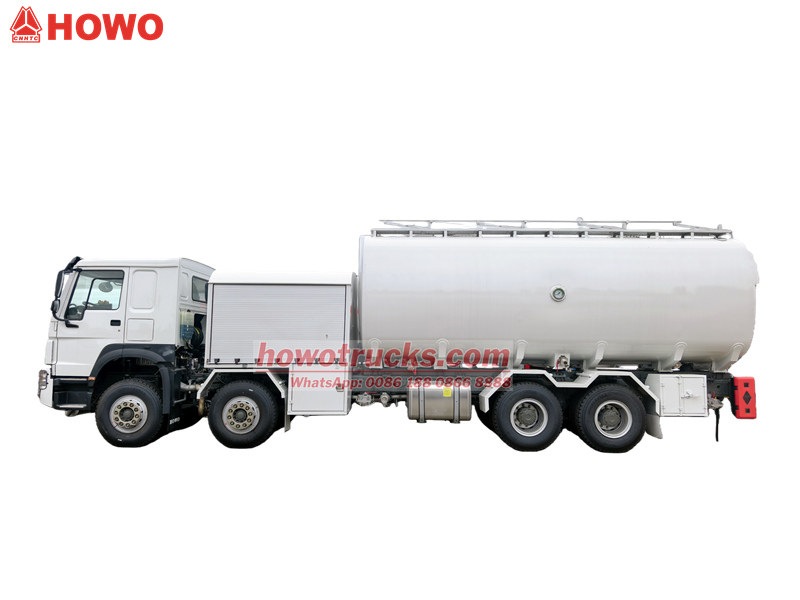

Mounted on a rugged 8x4 heavy-duty chassis with a large aviation fuel tank fitted with top safety rails and a sealed side roller shutter cabinet for refueling equipment, it meets international aviation safety standards and serves as a trustworthy, high-efficiency fuel transport and refueling workhorse for global airports and aviation ground service operators.

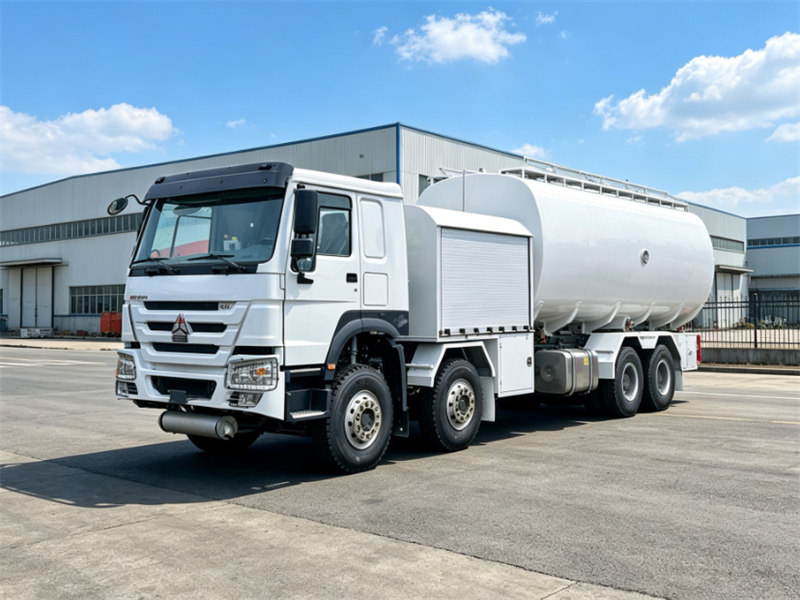

*HOWO Heavy 8x4 Aircraft Refueling Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in HOWO truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS Trucks Group
Features:
▶ Truck Chassis: Sinotruk HOWO truck chassis,8x4, 8x8 model, WP model with 300HP,340HP,371HP,380HP,400HP... Euro 2,3
▶ Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.
▶ Professional Compartment：The tank is divided into 3 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.
✦ Ⅱ.Product Parameter For Howo NX Diesel Pump Truck « « «
|
TECHNICAL SPECIFICATION |
||
|
Main specification |
Product Name |
Aircraft Refueling Truck |
|
Vehicle Model |
CSC52809FJYC |
|
|
Tank Capacity |
20000L |
|
|
Refueling Type |
Pressure refueling |
|
|
Application |
Jet fuel, aviation gasoline |
|
|
Overall Dimension |
11350×2550×3960mm （reference） |
|
|
Chassis |
Brand |
HOWO |
|
Drive Form |
8×4, LHD |
|
|
Cabin |
HOWO cab, with one sleeper bed, with A/C |
|
|
Wheelbase |
1750+4600+1370 mm |
|
|
Gearbox |
HW19710, Manual 10 speed levers with 2 reverse |
|
|
F/R Axle load |
7500*2kg/13000*2kg |
|
|
Tire |
12.00R20, 12 pcs with a spare tire |
|
|
Engine |
Brand |
Weichai |
|
Model |
WP12S400E201 |
|
|
Fuel type |
Diesel |
|
|
Power |
400HP/293kW |
|
|
Displacement |
12 L |
|
|
Emission standard |
Euro 2 |
|
|
Rated speed |
2100 rpm |
|
|
Max. torque |
1450 N.m |
|
|
RefuelingTank Parameters |
||
|
Fuel Tank |
Volume |
20000L, single compartment |
|
Medium |
Jet fuel, aviation gasoline |
|
|
Tank material |
aluminum alloy |
|
|
Tank thickness |
5.5mm/5.7mm |
|
|
Color & Logo |
customized |
|
|
Manhole |
2 units Aluminum alloy manhole, Euro Standard, with breathing valve |
|
|
Tank Fittings |
Pump |
Self-priming centrifugal pump (pump in and pump out), flow rate: 2500L/min |
|
Refueling reel |
DN38, 20meter, flow rate 350L/min |
|
|
Filter Separator |
Rated flow: 2500L/min |
|
|
Underwing refueling nozzle |
Equipped, 1200L/Min |
|
|
Overwing refueling nozzle |
Equipped, 2500L/Min |
|
|
Level meter |
6” floating ball type |
|
|
Control system |
DeadMan control system |
|
|
Others |
Guardrail on top of the tank, rear ladder, tool box, etc |
|
✦ Ⅲ. HOWO Heavy 20000L Aircraft Refueling Truck « « «

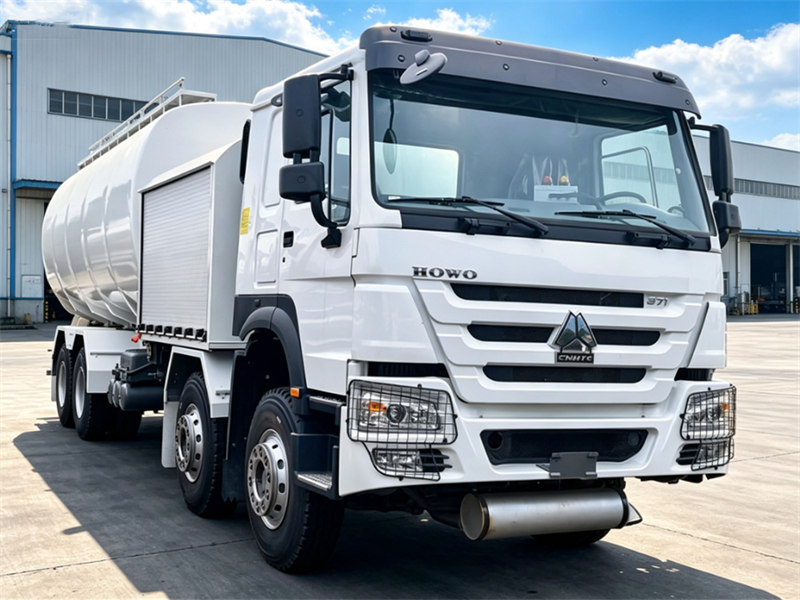

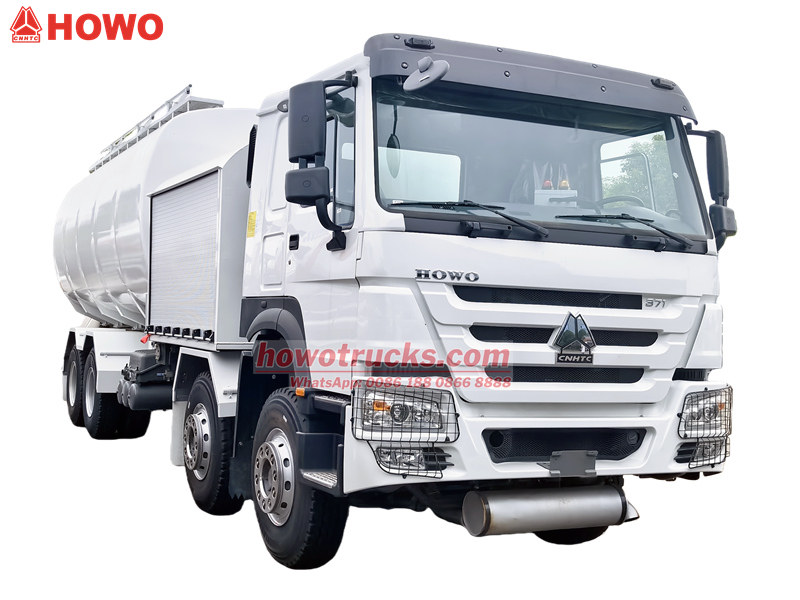

1. Heavy-Duty HOWO 8×4 Chassis Advantage:
♦ Powerful reliable power assembly: Equipped with Weichai WP12S400E201 6 cylinder turbo diesel engine, delivering 400HP max power and peak torque of 1450N·m, providing strong power reserve for full-load aviation fuel transportation on airport tarmacs.
♦ Stable heavy-load carrying structure: 8×4 left-hand drive layout with front axle load 7.5t×2 and rear axle load 13t×2, bearing the full 20,000L tank weight steadily without deformation.
♦ Mature heavy-duty transmission system: HW19710 manual gearbox with 10 forward gears and 2 reverse gears, paired with reinforced clutch, featuring smooth shifting and strong load adaptability.
♦ Comfortable all-weather operation cabin: Standard HOWO single-sleeper cab with air conditioning, creating a long-lasting fatigue-reducing working environment for ground fueling operators.
2. Professional Aviation Fuel Superstructure Tank & Fittings Advantage:

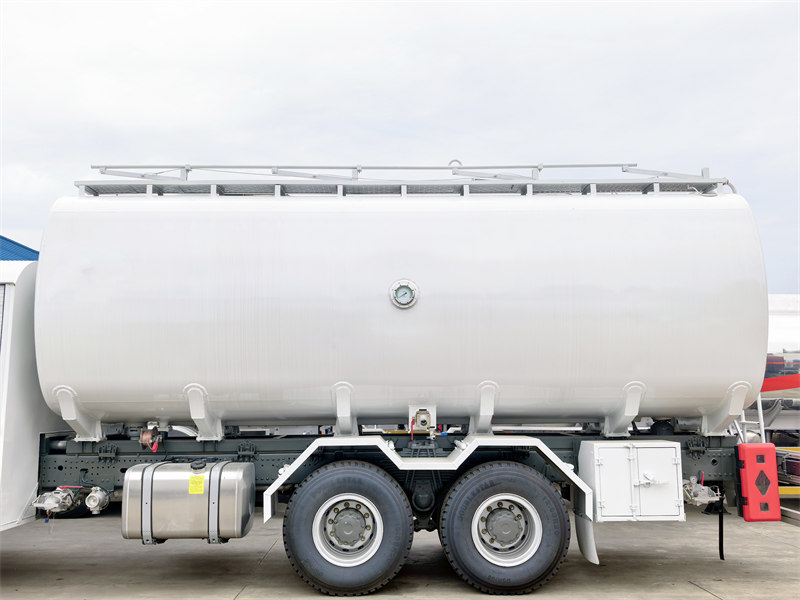

♦ Lightweight & corrosion-resistant aluminum alloy tank body: 20,000L single-compartment tank made of 5.5/5.7mm thick aluminum alloy, anti-rust and anti-aviation fuel corrosion; tank color and logos fully customizable to meet brand requirements.

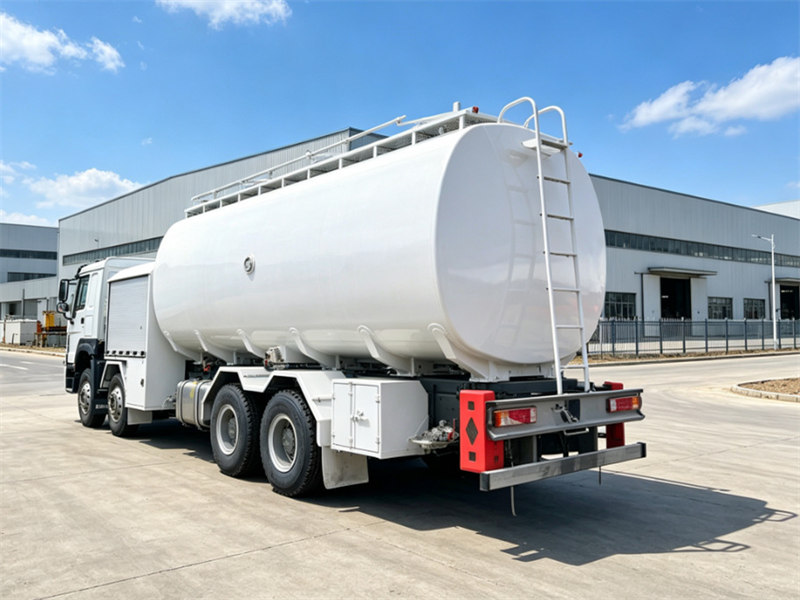

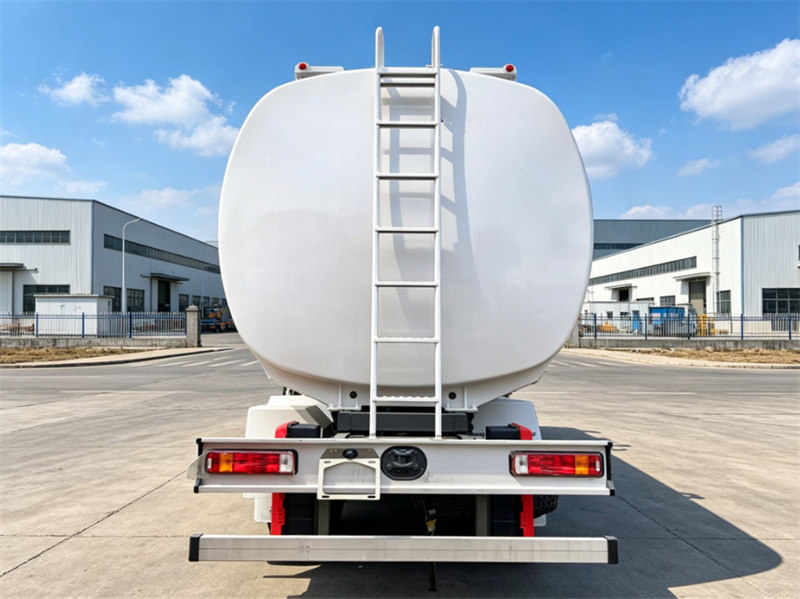

♦ Euro-standard safety tank design: Dual aluminum alloy manholes with breathing valves, top safety guardrail and rear climbing ladder, fully complying with international aviation fuel storage safety regulations.

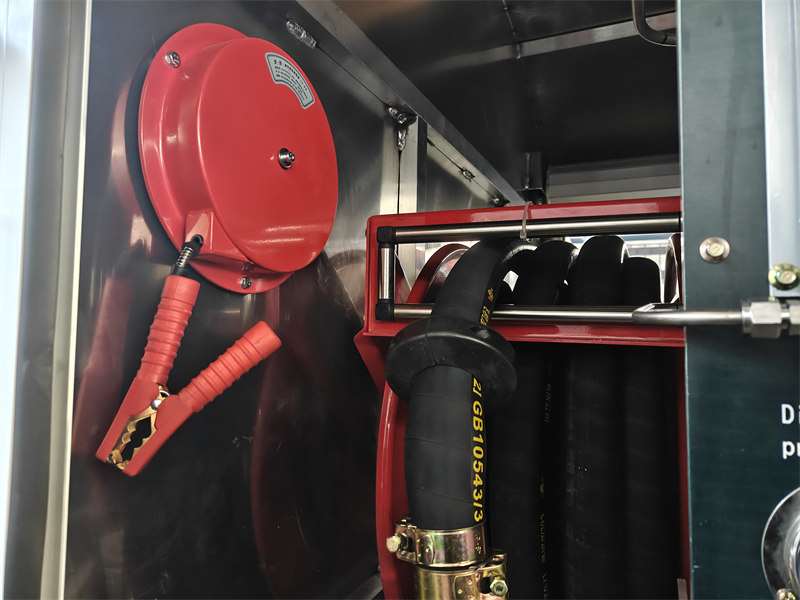

♦ High-efficiency dual-mode refueling system: complete with underwing (1200L/min) and overwing (2500L/min) refueling nozzles, plus a 20-meter DN38 refueling reel, supporting all mainstream aircraft refueling demands.

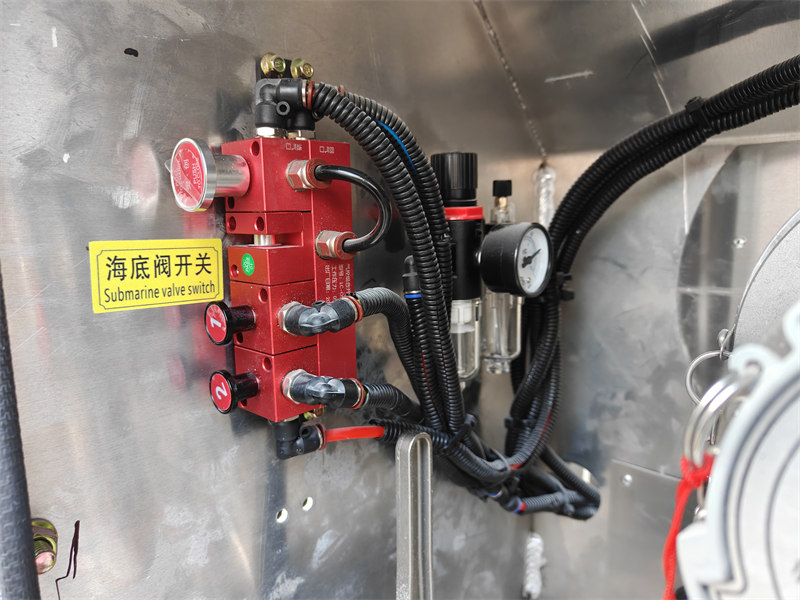

♦ Precision fuel purification & control: Equipped with high-flow filter separator, 6-inch floating ball level gauge and DeadMan safety control system to avoid fuel leakage and ensure fuel cleanliness during refueling.

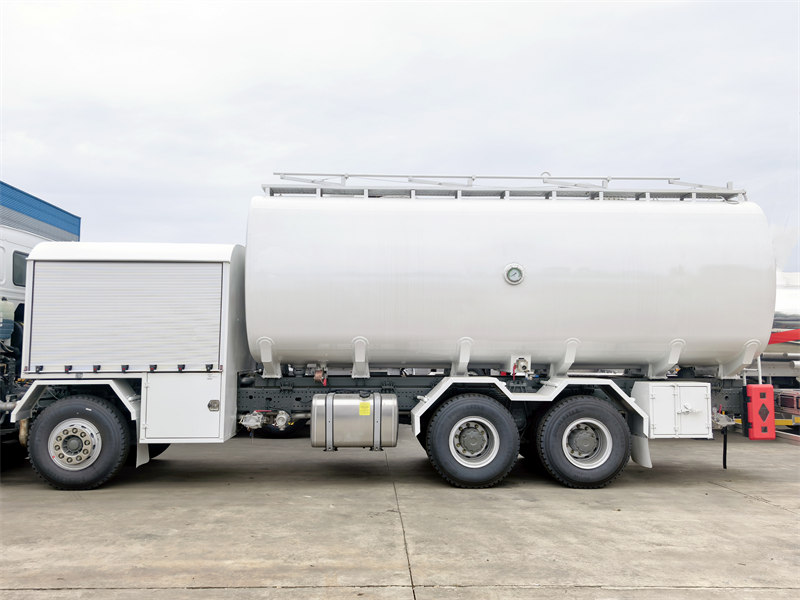

♦ Integrated enclosed storage configuration: Side roller shutter tool cabinet to store all refueling fittings, effectively protecting core equipment from wind, dust and rain on open airport aprons.
✦ Ⅳ.Howo Heavy Fuel Tank Truck Details « « «

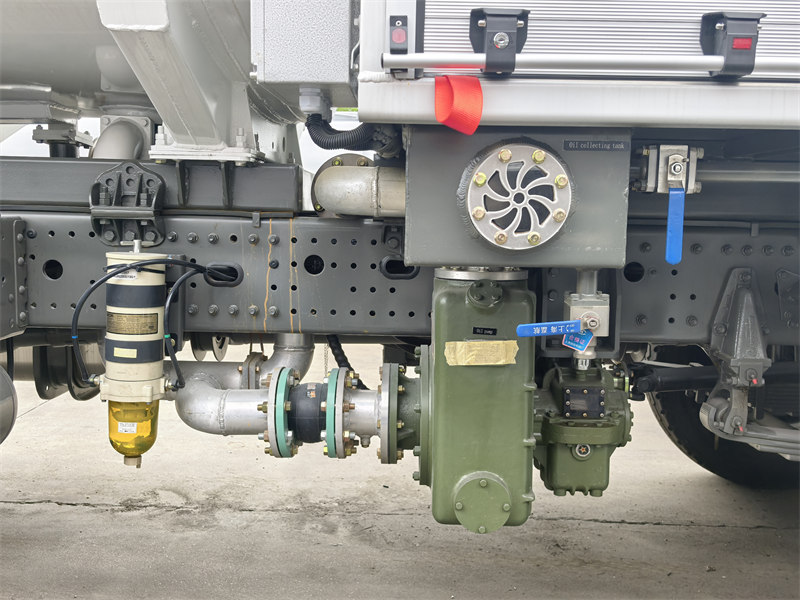

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.
♦ The oil pump is connected to the chassis via a pump mounting bracket.
 |
 |
♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.
♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.
|
Oil Pump |
|
|
Model |
ZX150-120 |
|
Pressure |
0.6 MPa |
|
Flow |
150 m³/h |
|
Power Supplied |
67 KW |
|
Rotational Speed |
3000 r/min |
1. Pre Job Inspection:
♦ Inspect the chassis: Check engine oil, coolant, tires, braking system and air conditioner; start the Weichai 400HP engine and idle to rule out abnormal noise or fluid leaks.
♦ Check the aluminum alloy fuel tank & fittings: Confirm the 20,000L tank, manholes, breathing valves, top guardrail and roller shutter cabinet are intact; drain water and sediment from the tank bottom.
♦ Test core refueling devices: Verify the self-priming centrifugal pump, filter separator, DeadMan safety control system, refueling reel and two types of nozzles work normally.
♦ Prepare safety supplies: Static grounding cable, fire cones and fire extinguishers must be complete and valid.

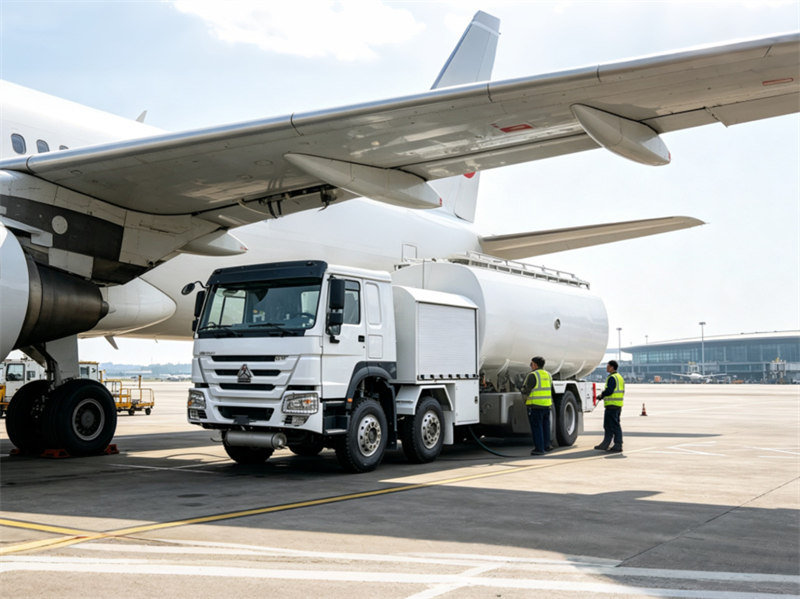

2. Safe Docking at Apron:
♦ Drive slowly to the windward side of the aircraft, pull the handbrake, shift to neutral and secure tires with wheel chocks.

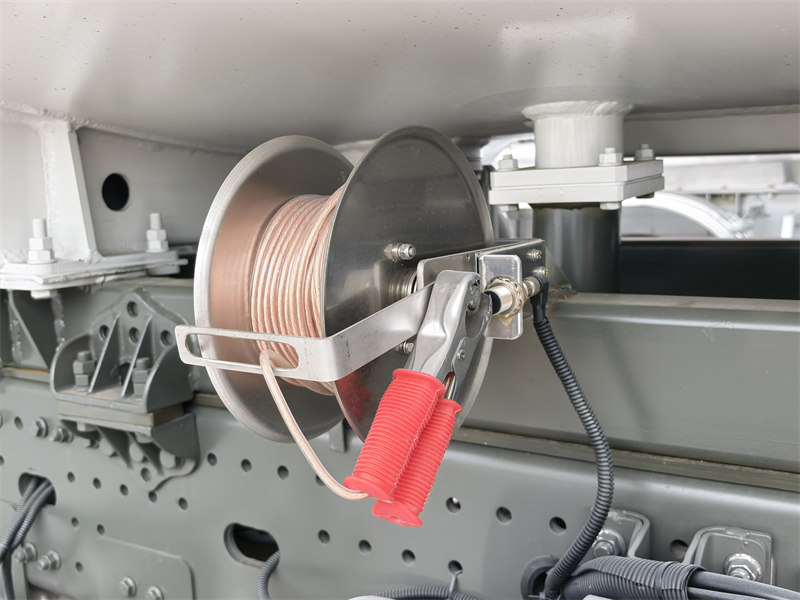

♦ Connect the static grounding cable between the truck and aircraft bare metal to eliminate static electricity.
♦ Place warning cones around the operation zone; prohibit open flames, smoking and charging devices within 15 meters.

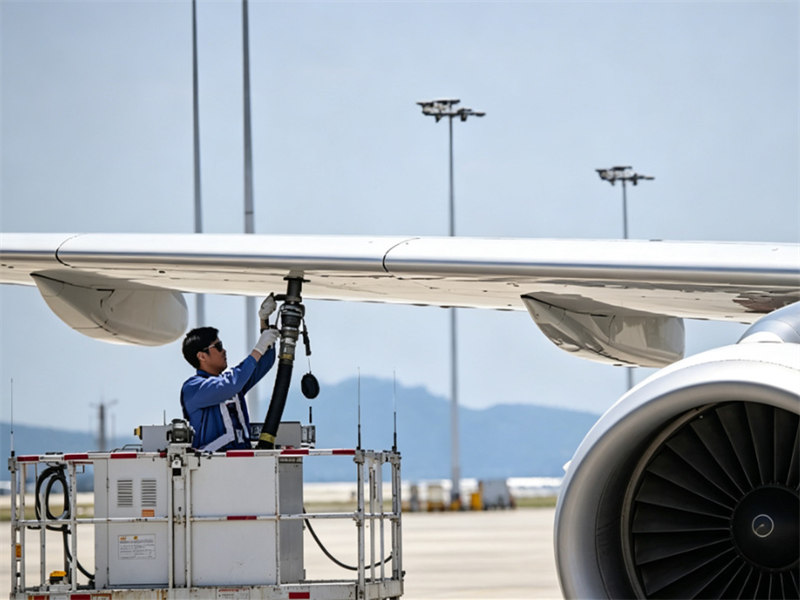

3. Aircraft Refueling Operation (Overwing / Underwing):
♦ Communicate with ground crew to confirm fuel type and target refueling volume.
♦ Pull out the 20m DN38 refueling hose, connect the matched overwing (2500L/min) or underwing (1200L/min) nozzle tightly to the aircraft fuel port.
♦ Hold the control handle to activate the pump, start low-flow fuel delivery then adjust to standard flow; monitor flow meters and fuel quantity in real time.
♦ Once the target volume is reached, release the DeadMan handle to automatically stop pumping, release pipeline pressure and disconnect the nozzle.
4. Post-Refueling Site & Equipment Recovery:
♦ Retract the refueling hose, wipe residual fuel off fittings, store all equipment and lock the roller shutter cabinet.
♦ Remove wheel chocks, static cable and warning cones; clean spilled fuel with oil absorbent materials.
♦ Run the pump briefly in reverse to clear pipeline residue, close all tank valves and manholes.
♦ Let the engine idle for 2 minutes to cool down before shutting it off, then complete the refueling log.
