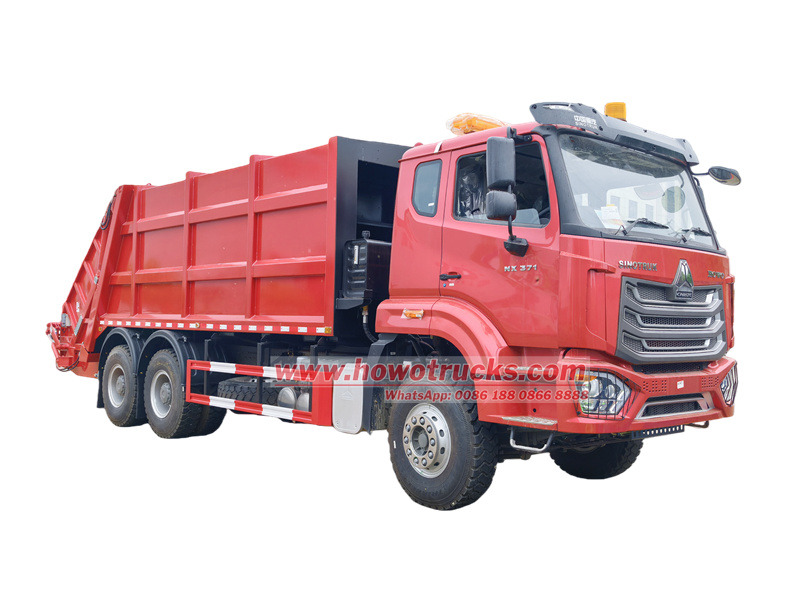

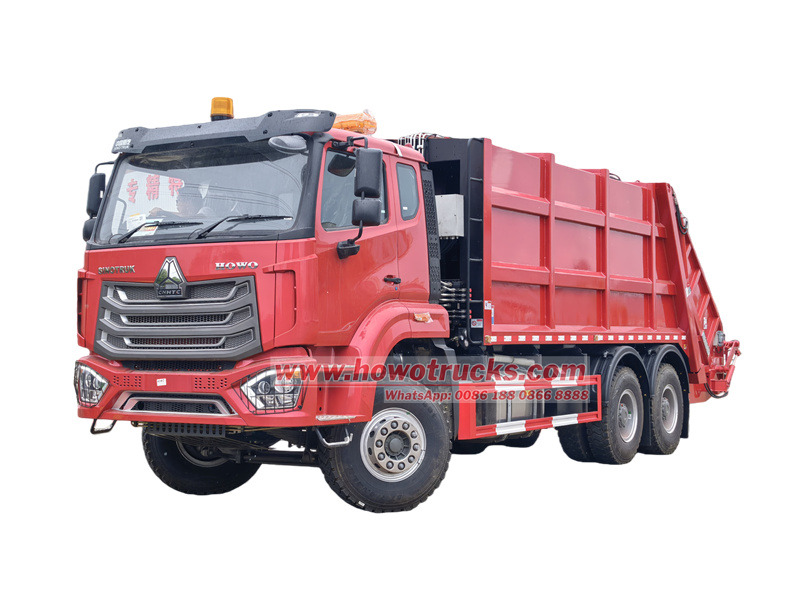

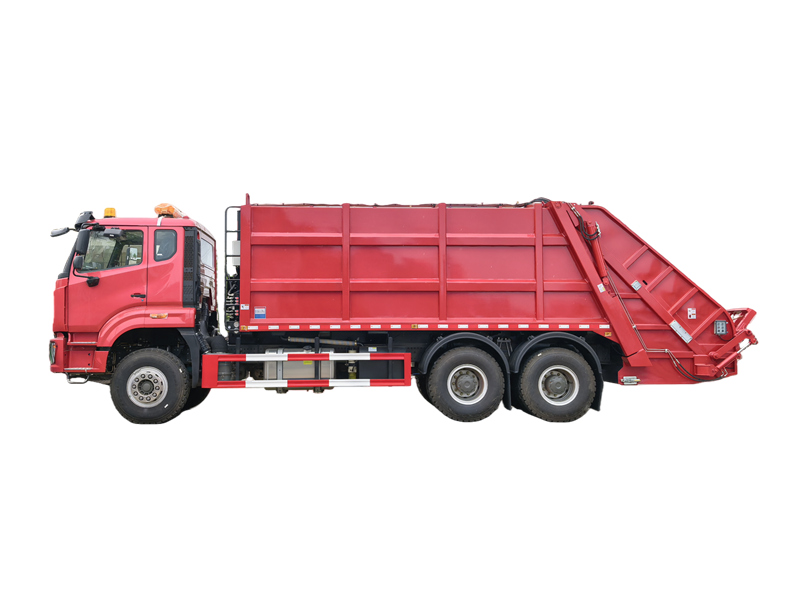

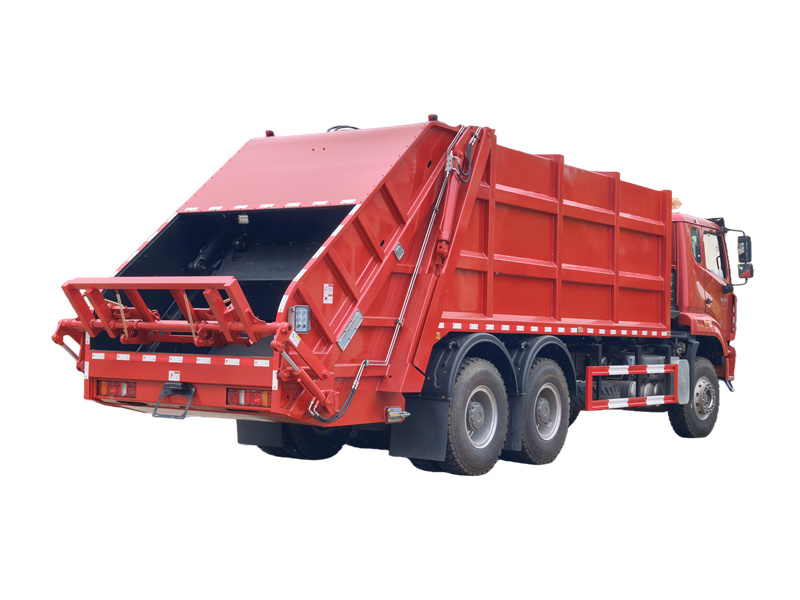

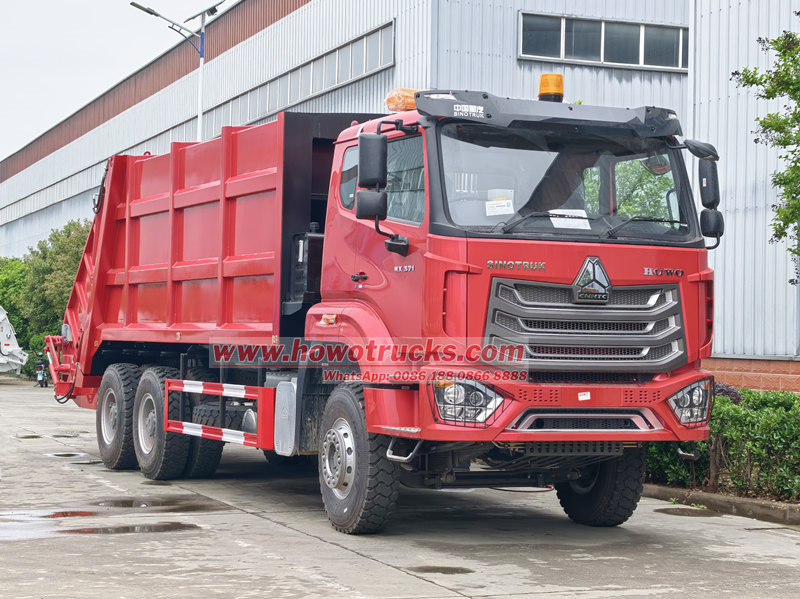

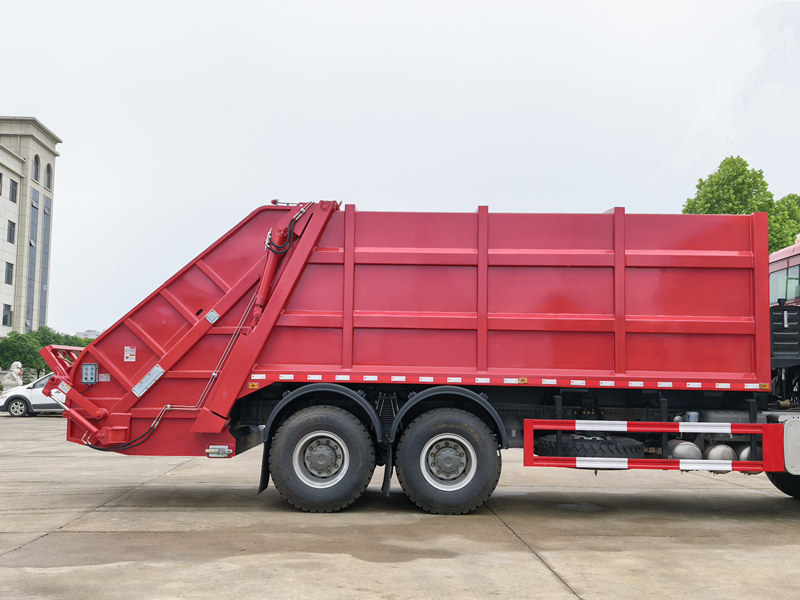

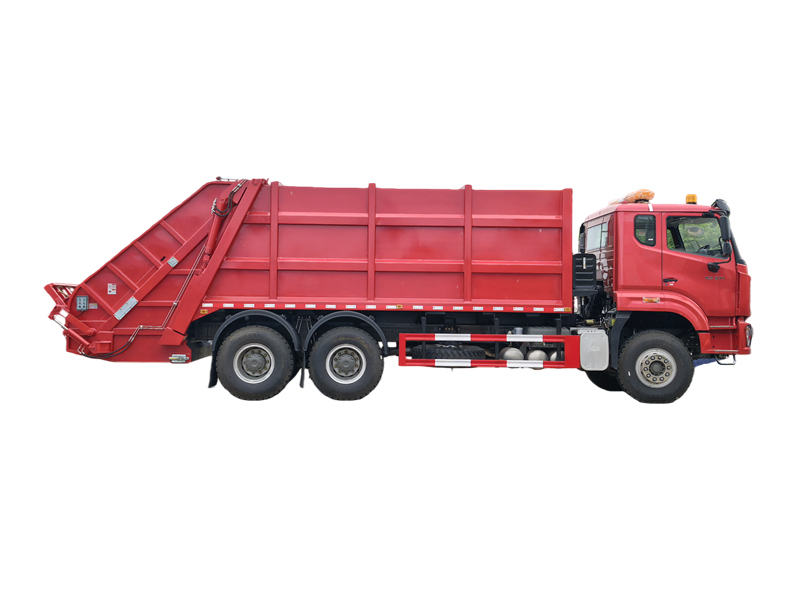

HOWO NX 20CBM rear loader for Tanzania

The HOWO 20CBM Refuse Compactor Truck is a rear-loading type sanitation vehicle tailored for the African market. It is built on the HOWO NX 6×4 chassis, powered by a WD615.47 371 HP engine and an HW19710 ten-speed transmission, providing ample power, good climbing ability, and excellent passability. The compactor body is welded with T420 special steel, offering a robust and durable structure with a compression ratio of up to 1:3. Equipped with a Siemens PLC control system, the loading and unloading actions are smooth, making it ideal for long-distance transport and continuous operation.

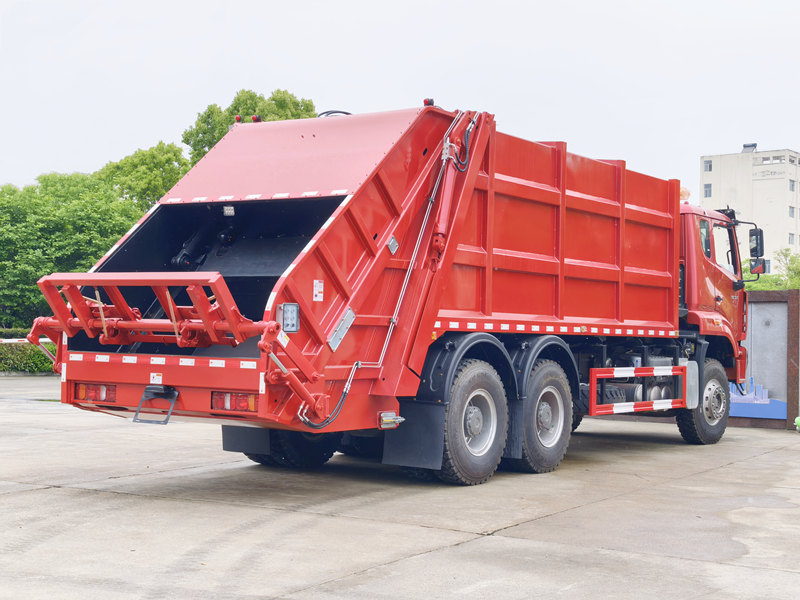

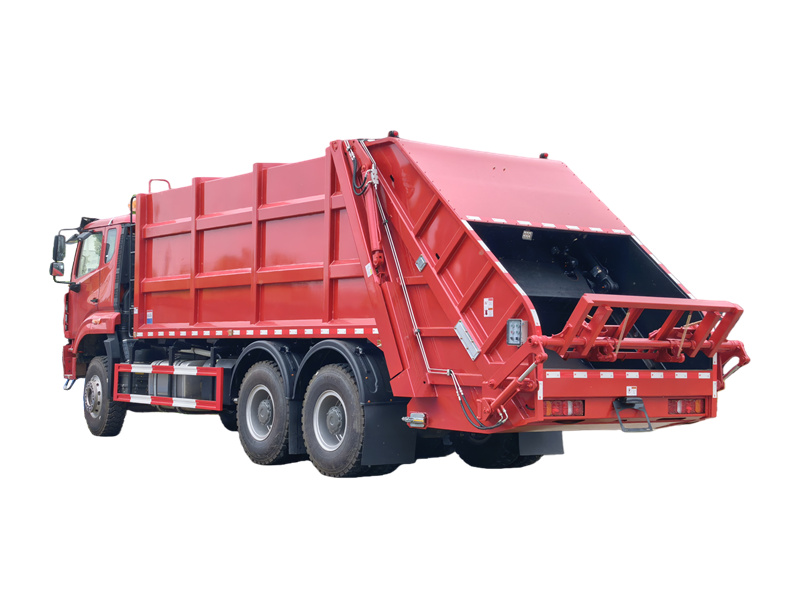

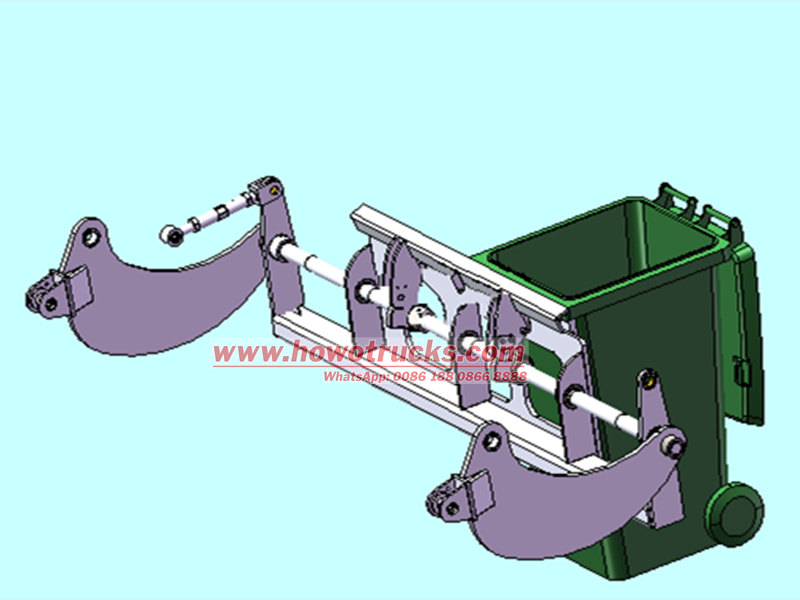

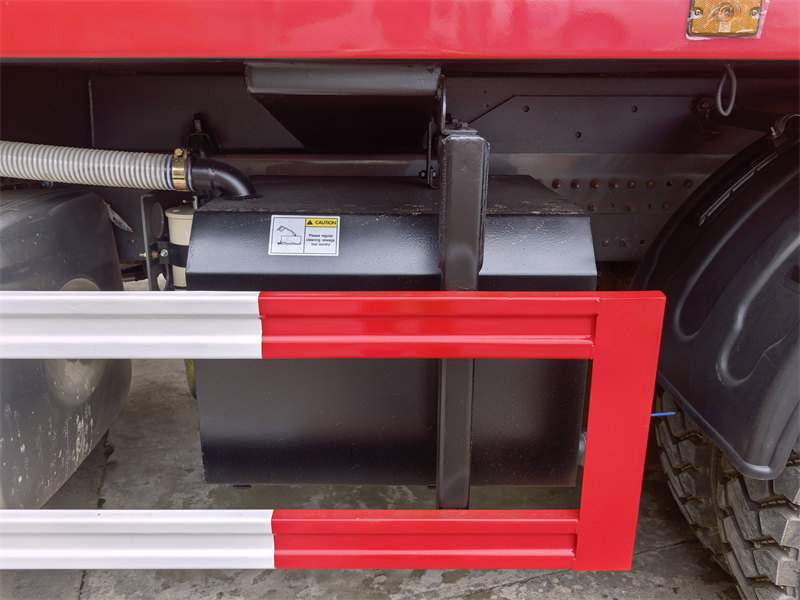

The tailgate slide and curved plate of this HOWO waste compactor truck are made of high-strength wear-resistant materials. Leakage ports at the bottom of the loader allow wastewater to flow directly into the storage tank, preventing secondary pollution. The rear is equipped with a lifting mechanism for dual 240L trash bins, with a single loading cycle time of no more than 25 seconds and an unloading cycle time of approximately 110 seconds. The operation supports both automatic and manual modes, adapting well to unpaved roads and landfill working conditions typical in Africa.

*SINOTRUK HOWO Heavy Duty Garbage Compactor Truck
HOWO NX 20CBM Heavy Duty Rear Loader*
-----------------------------------------------------------------------------

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Ⅰ.Product Defination and Introduction:

Manufacturer: CS TRUCKS Group
Features:

► Chassis: HOWO NX 6x4 heavy-duty chassis, 371HP diesel engine, 10-speed gearbox

► Compactor Volume: Effective compactor body volume up to 20CBM

► Compactor material: Made of 5mm thick T420 special steel

► Compression ratio: High compression ratio, the density of municipal solid waste can reach 700-800 kg/m³ after compression

► Operation Scope: Suitable for municipal solid waste collection, commercial refuse compaction, and urban sanitation operations

✦Ⅲ.Howo 20CBM Refuse Compactor Truck Advantages:

1. Powerful and Reliable Chassis: Equipped with a WD615.47 371 HP engine and HW19710 ten-speed transmission, it offers ample power reserve, strong climbing ability, and excellent passability on complex road conditions, suitable for long-distance transport and continuous heavy-duty operation.
2. Durable and Robust Body: The compactor body is welded with T420 special steel and reinforced with a strengthened beam structure, providing high load capacity, uniform stress distribution, and resistance to deformation, making it adaptable to harsh working conditions and long-distance transport in regions like Africa.
3. High Compression Efficiency: With a compression ratio of up to 1:3, it effectively increases single-load capacity, reduces transport frequency, and lowers operating costs.
4. Well-Designed Sealing System: Adjustable sealing strips are installed on both sides and the top of the push shovel to prevent leakage of garbage and wastewater.

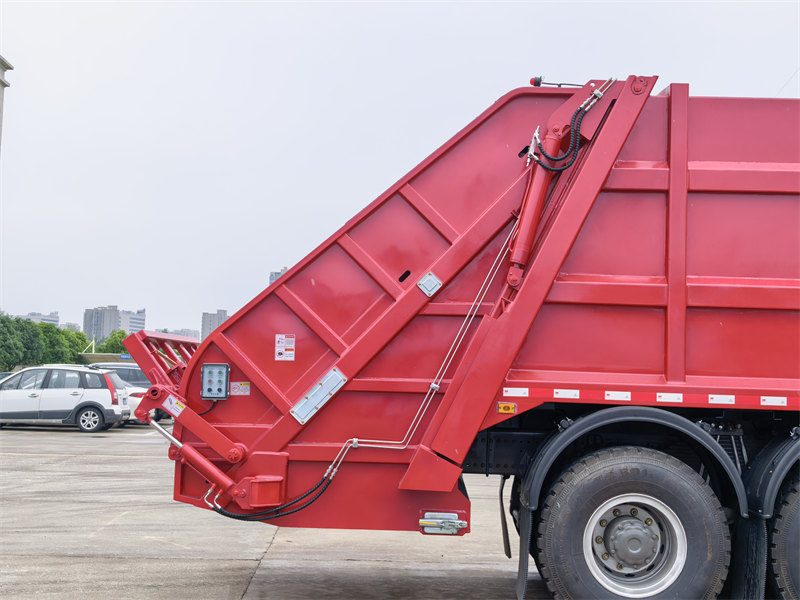

5. Wear-Resistant Key Components: The tailgate slide and lower curved plate are cold-formed using high-strength wear-resistant materials, extending the equipment's service life in heavy-load, high-frequency operating environments.

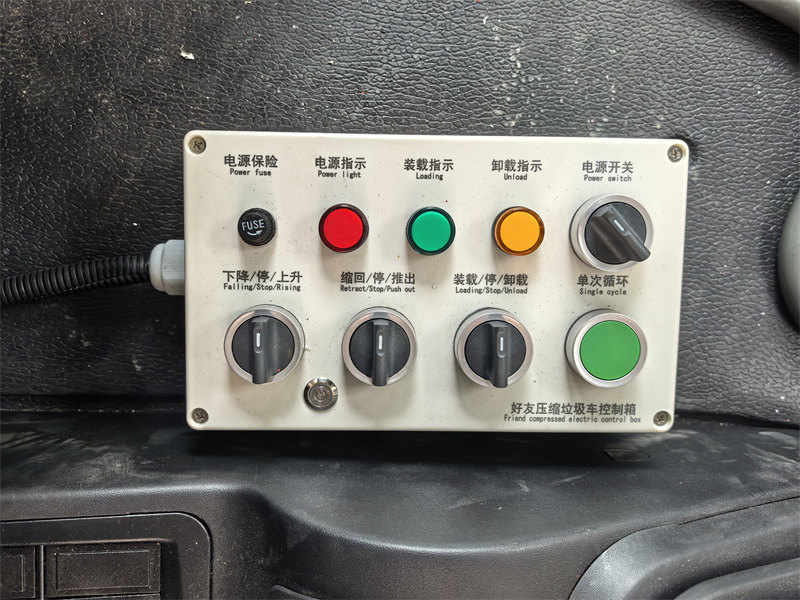

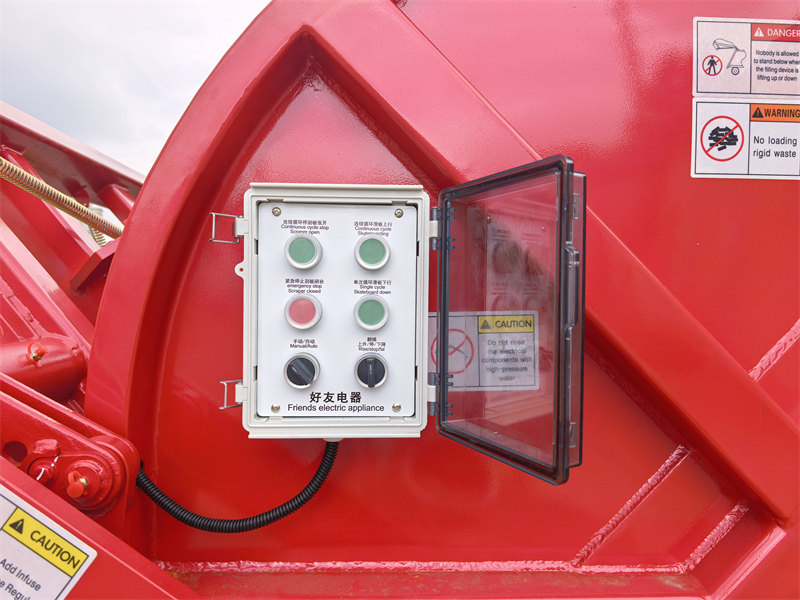

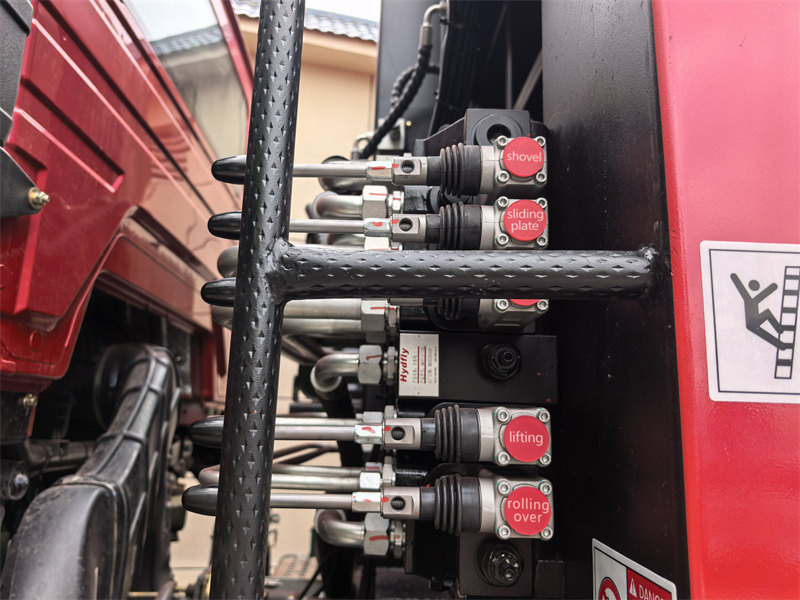

6. High Operational Efficiency and Flexible Control: Single loading cycle ≤25 seconds, unloading cycle ≤110 seconds, and the bin lifting mechanism cycle ≤10 seconds. The Siemens PLC control system supports both automatic and manual modes, ensuring convenient and reliable operation.

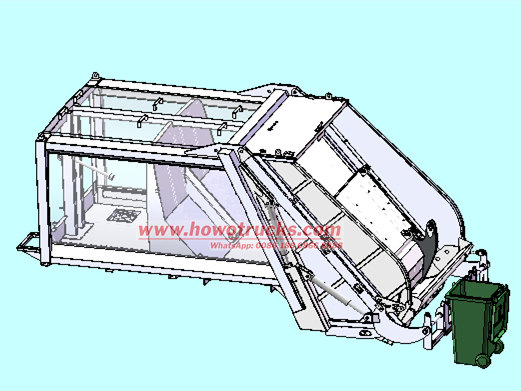

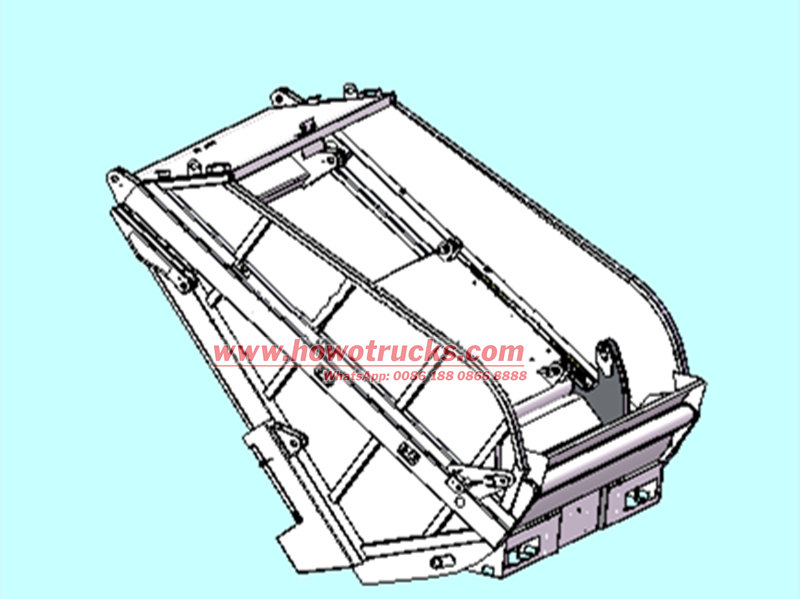

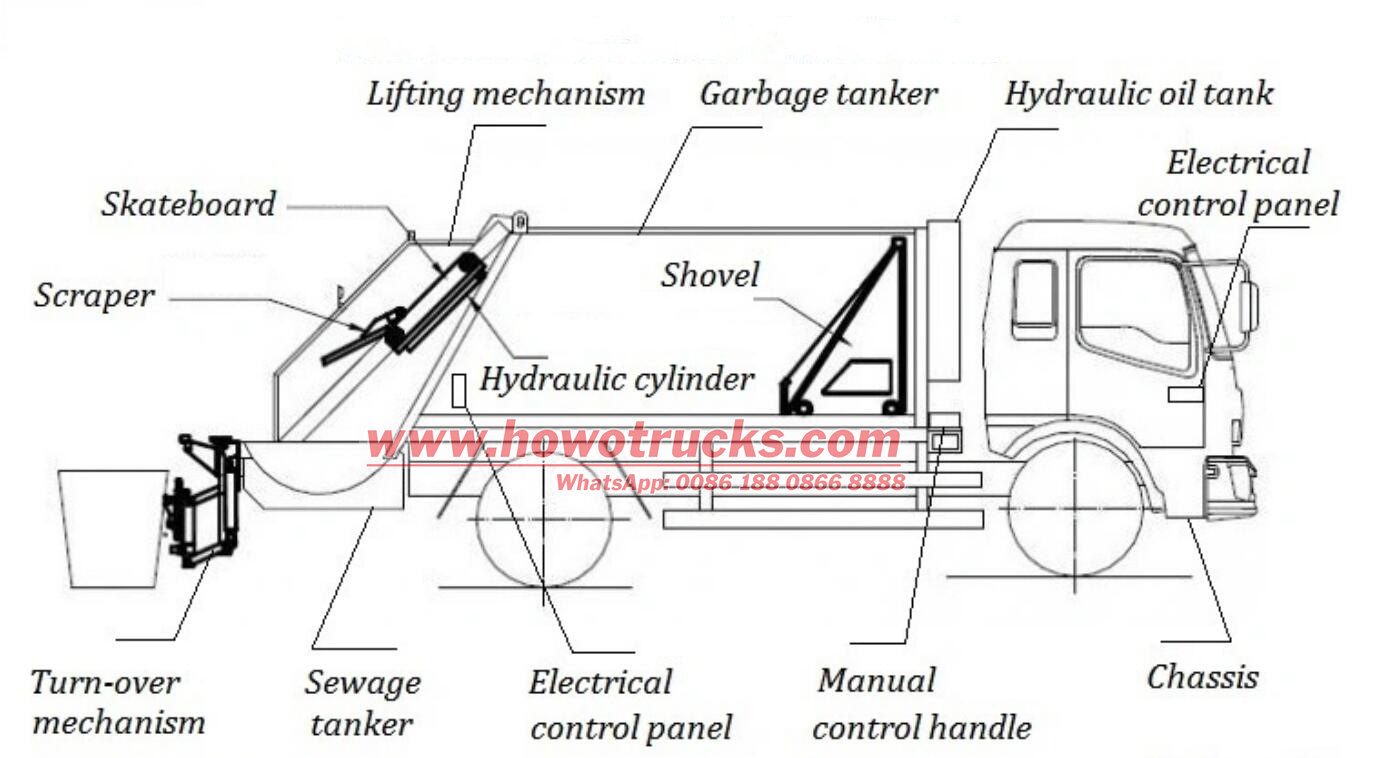

✦Ⅳ.HOWO rear loader truck structure
